Ch 2. Relation Model¶

约 171 个字 6 行代码 5 张图片预计阅读时间 1 分钟

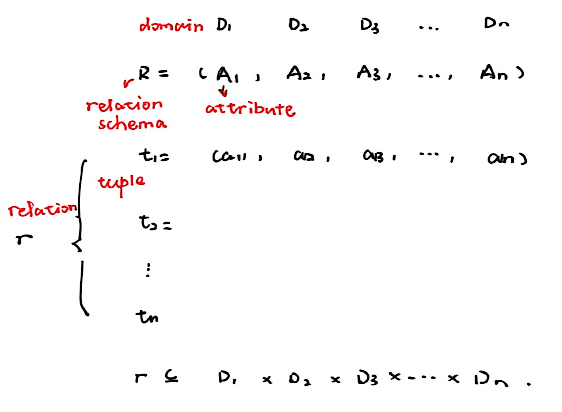

Relations¶

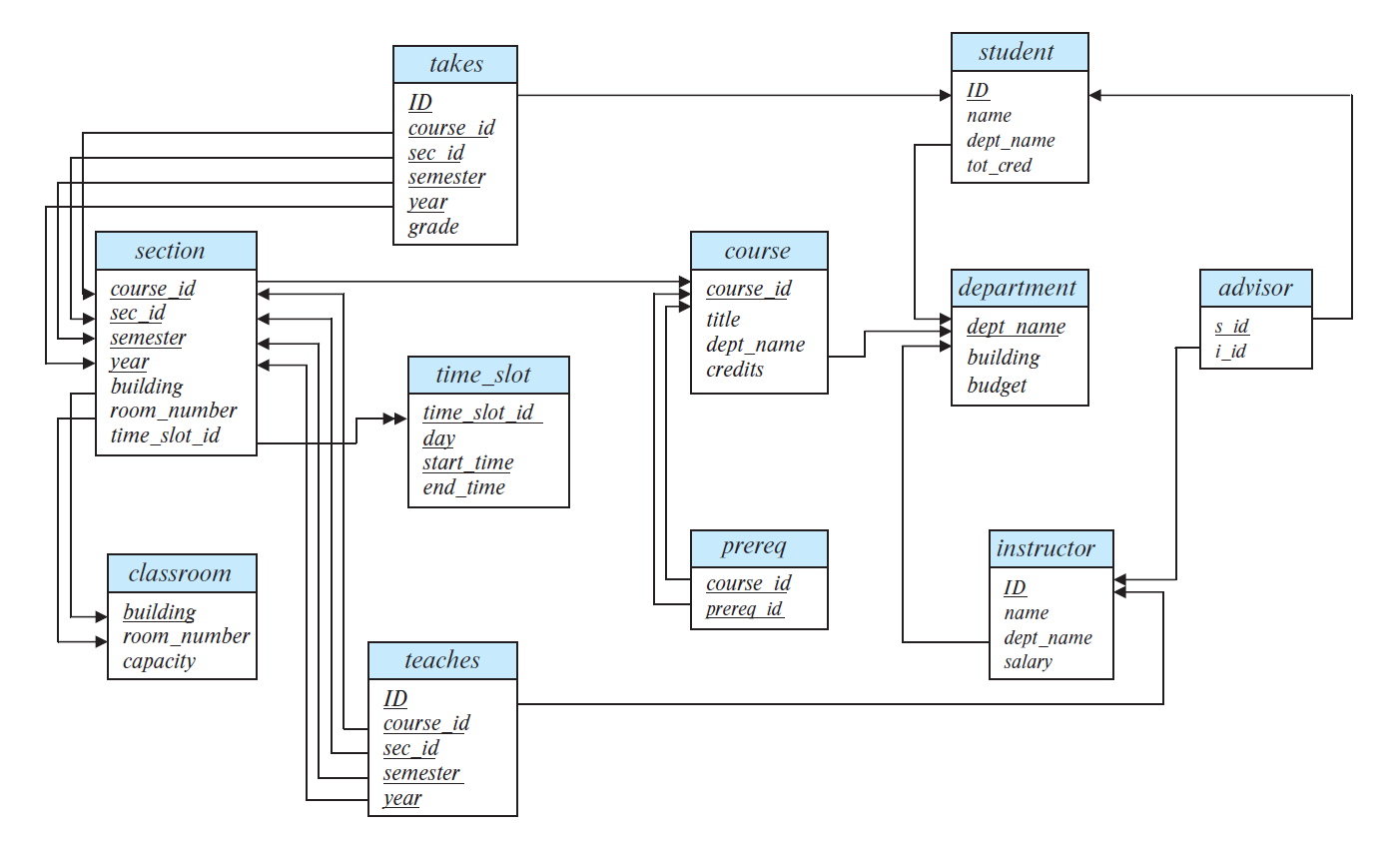

Schema Diagrams¶

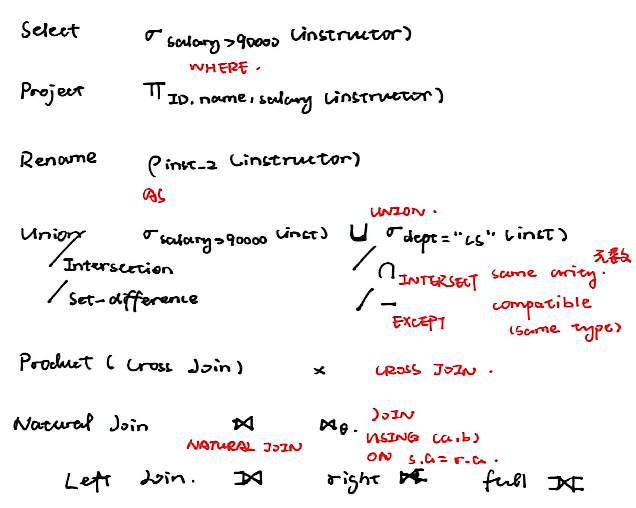

Relational Algebra¶

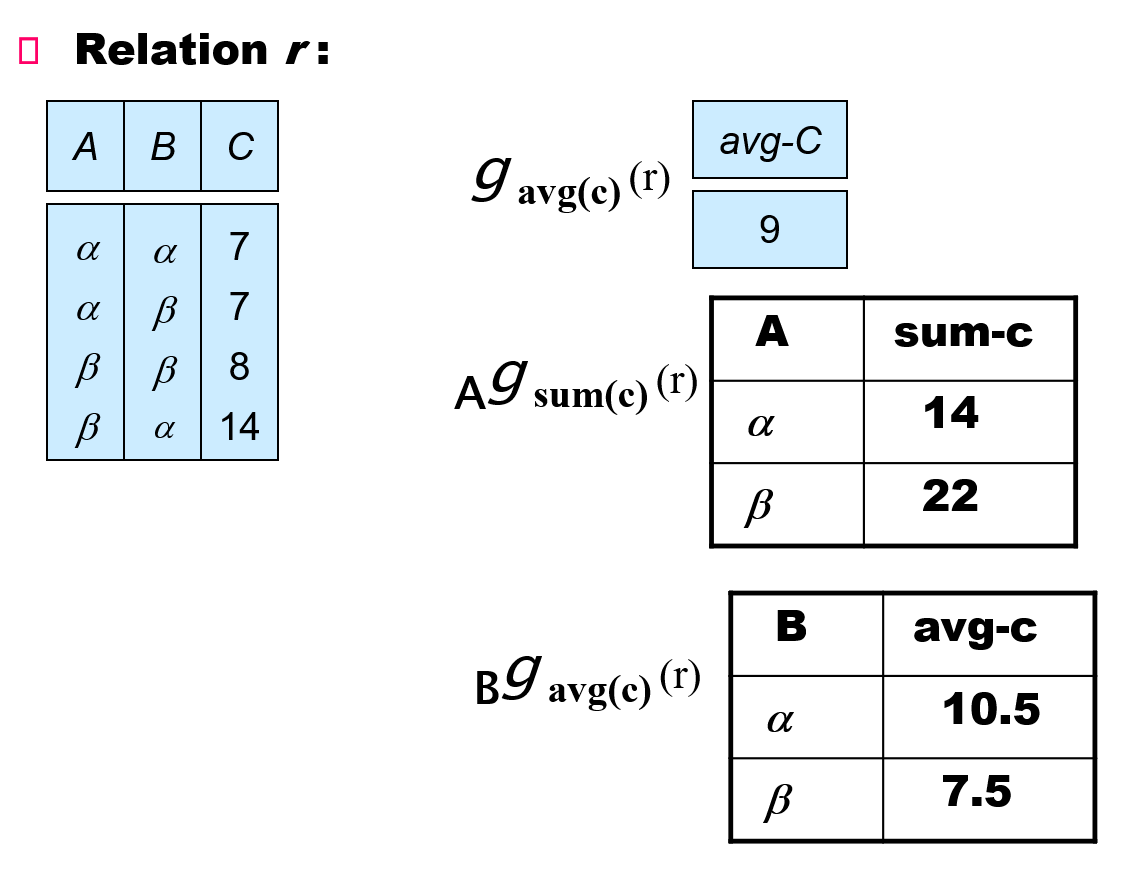

Extended Relational Algebra¶

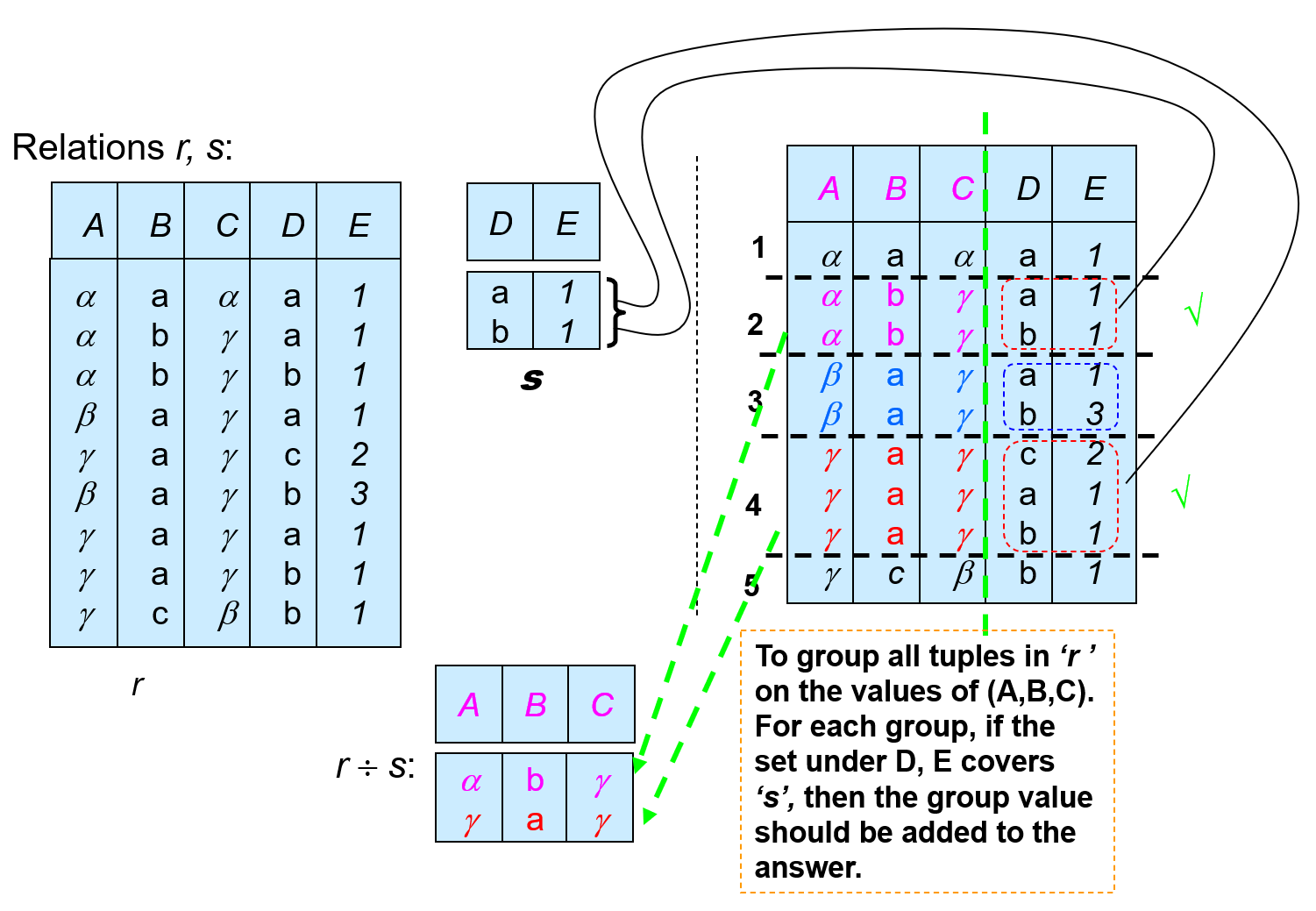

Divide¶

\[R \div S = \pi_{R-S}(R) - \pi_{R-S}\left( \left( \pi_{R-S}(R) \times S \right) - R \right).\]

To find maximal \(q\) that satisfies \(q \times S \subseteq r\).

Example

Consider a university database schema designed to track student enrollments. The schema is defined as follows:

student(sid, sname)
course(cid, cname)
enrollment(sid, cid)

In this schema, sid and cid serve as the primary keys for their respective tables, while enrollment links students to the courses they have attended.

Task: Find the IDs of all students who have enrolled in every course listed in the course table.

Provide the relational algebra expression that identifies these students. You must use basic operators (Selection, Projection, Cartesian Product, Set Difference) to express the logic of division without using the specialized division operator (\(\div\)).
Write a SQL query to retrieve the sid of these students.

Answer

\[\pi_{sid}(student) - \pi_{sid}((\pi_{sid}(student) \times \pi_{cid}(course)) - enrollment)\]

SELECT sid FROM student AS s
WHERE NOT EXISTS (
    SELECT cid FROM course AS c
    EXCEPT
    SELECT cid FROM enrollment WHERE enrollment.sid = sc.sid
);
